CNC Drilling and Dowel inserting Machines DRILLTEQ D-110
CNC Drilling and Dowel inserting Machines DRILLTEQ D-110
Even better horizontal drilling and doweling
The new entry-level CNC DRILLTEQ D-110 has exactly two tasks: horizontal drilling and doweling. And that makes it more effective than ever. With up to 3 individually selectable drilling spindles and space for up to 4 workpieces, it offers a wide range of functions. In conjunction with the CNC programming system woodWOP 8.1, it forms a synergy based on partnership. The drilling and doweling operations are automatically preset in height and depth in the respective program and automatically called up during processing. The doweling equipment used (consisting of doweling chamber, doweling unit and vibratory conveyor) has already proven itself in higher series. In future, it will also be used in the DRILLTEQ D-110 and can be used across all series.
Highlights
Vibration-absorbing machine bed
Robust steel frame construction with highly rigid, fiber-reinforced SORB TECH mineral mixture
Speed control of the drill feed
• Setting 1 = max. speed of the drill feed
• Setting 2 = adjustable speed of the drill feed via potentiometer (e.g. for solid wood)
Servomotorized adjustment of the depth in Y-direction
Precise adjustment of the drilling depth
Servomotor-driven height adjustment of the drilling in Z-direction
For adaptation to workpiece thicknesses in the range of 10 - 60 mm
Images
-
![]()

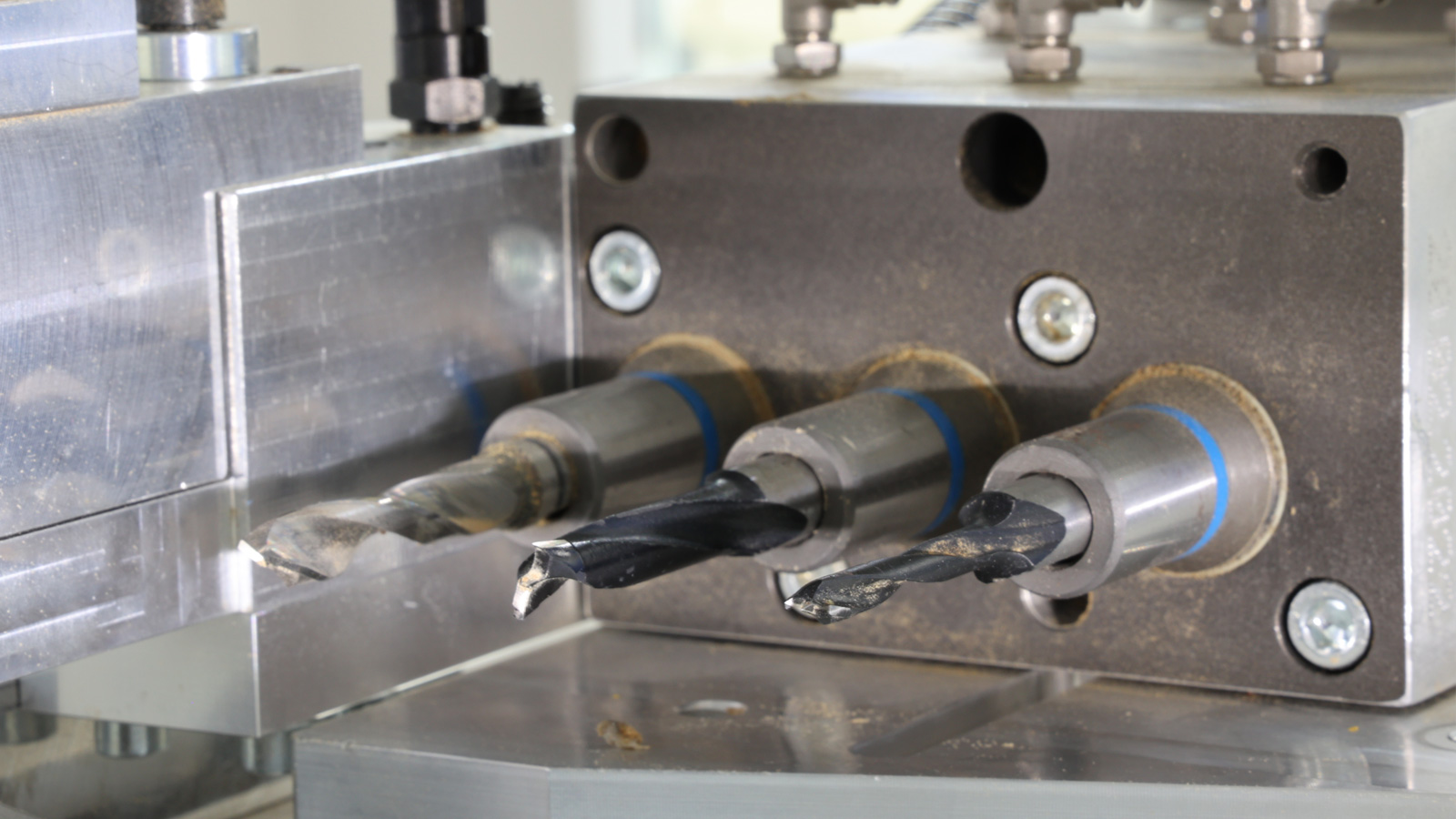

Up to 3 spindles can be individually called up, in a grid of 32 mm -
![]()

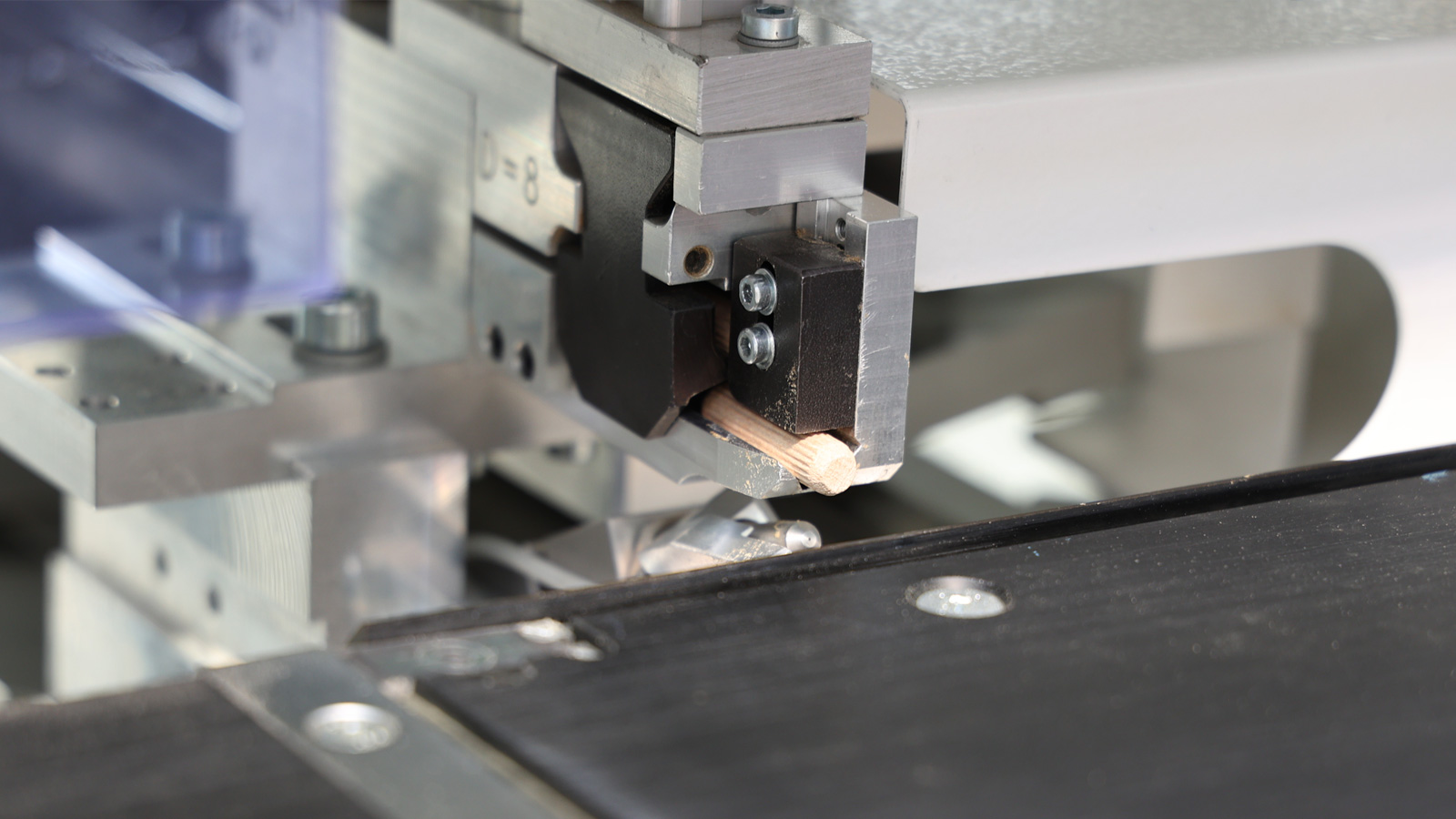

High-speed doweling unit for horizontal doweling with automatic glue application -
![]()

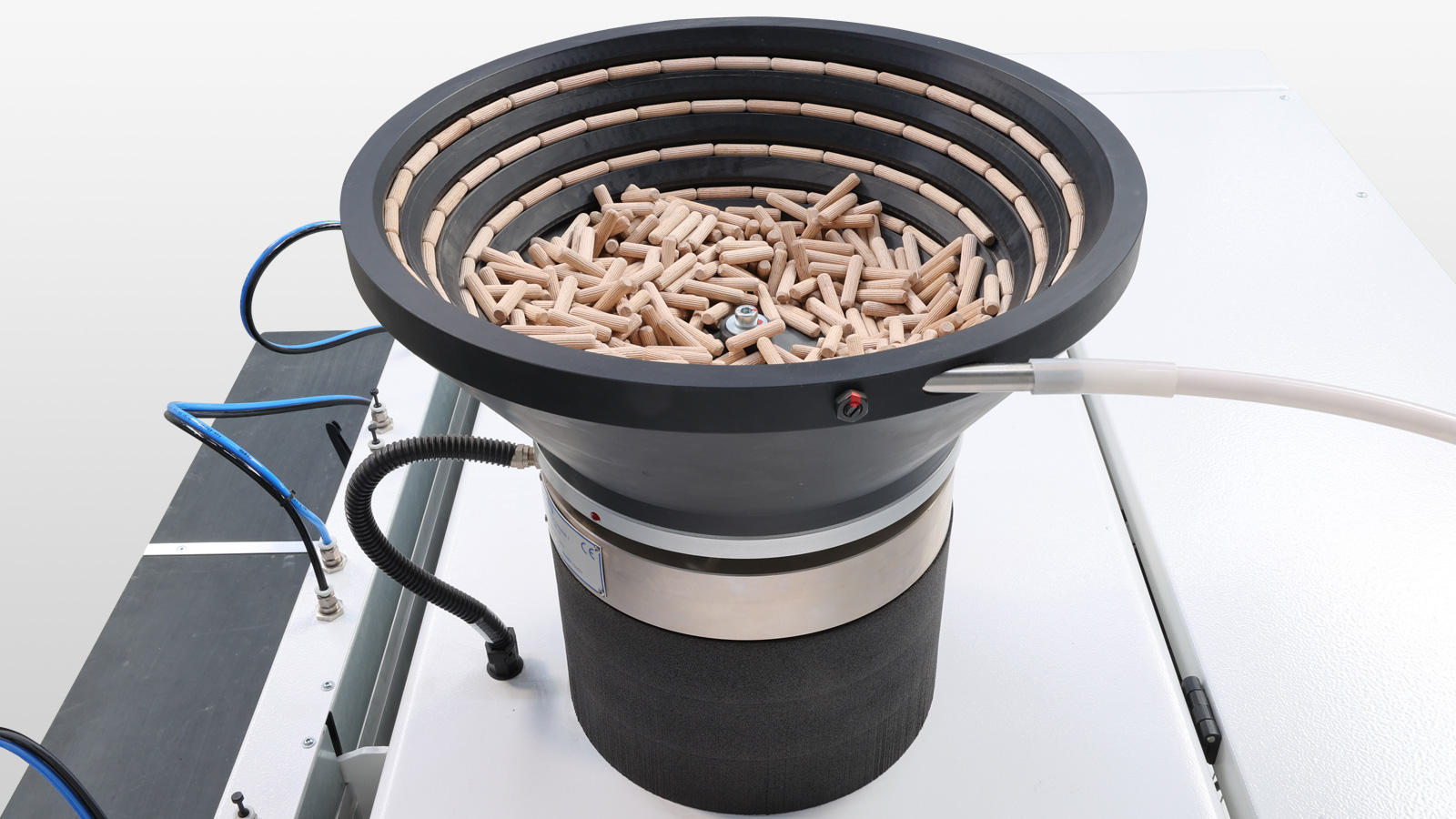

Vibratory conveyor for the automatic and safe feeding of standard dowels with the dimensions 8x30 mm or 8x35 mm. Other dowel dimensions on request -
![]()

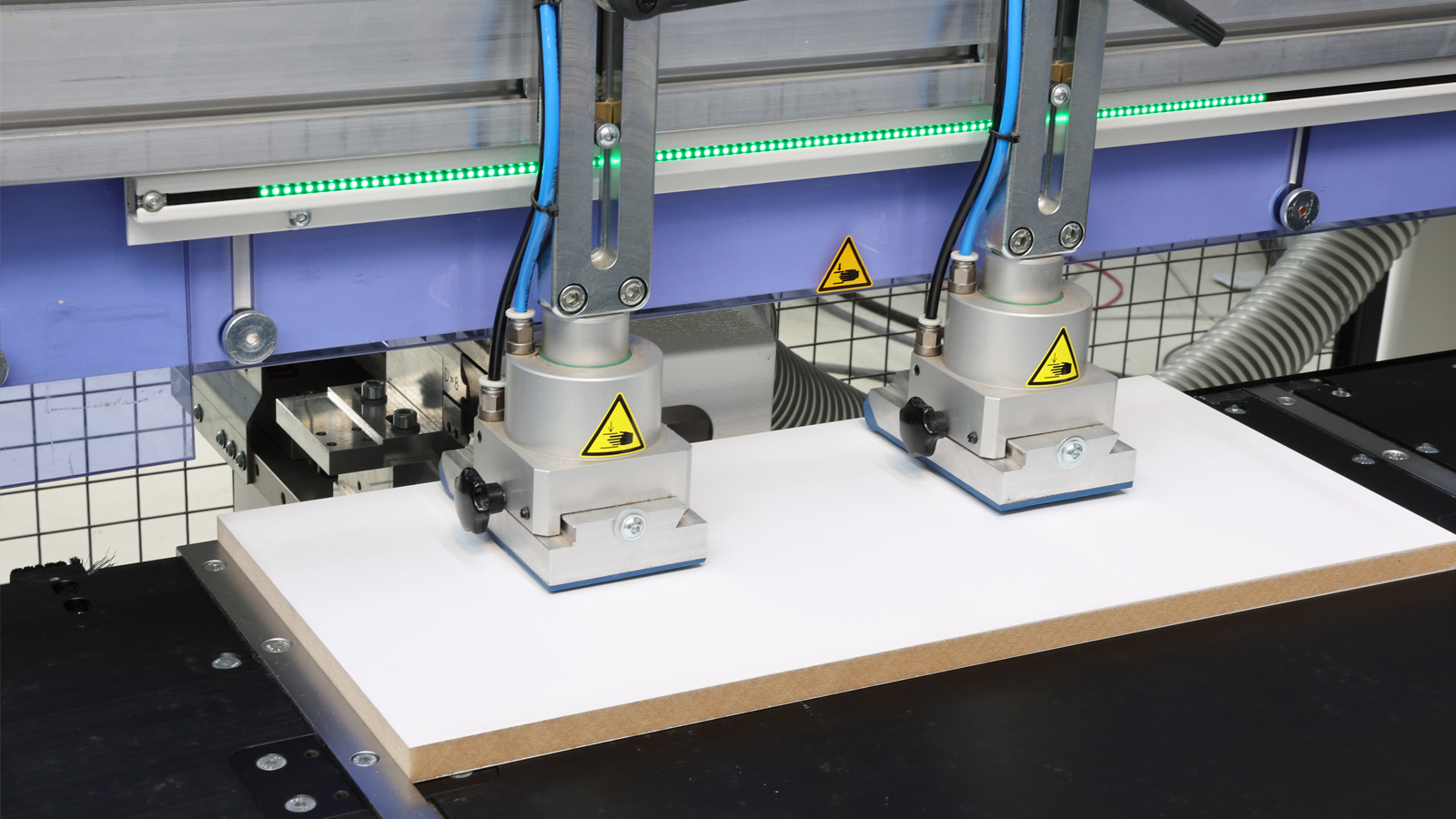

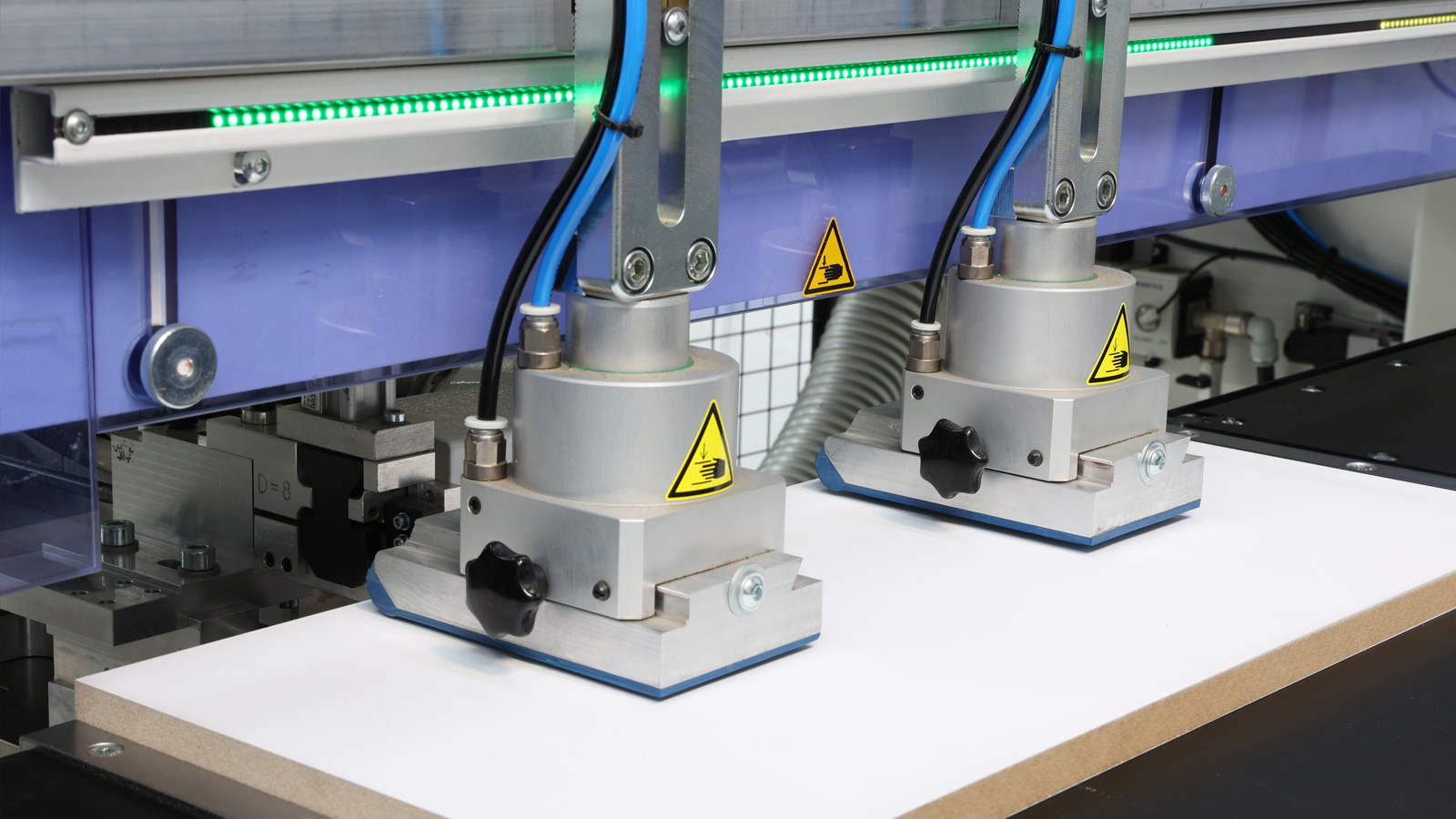

Up to 8 adjustable clamping cylinders enable secure and gentle clamping of the workpieces
-
![]()

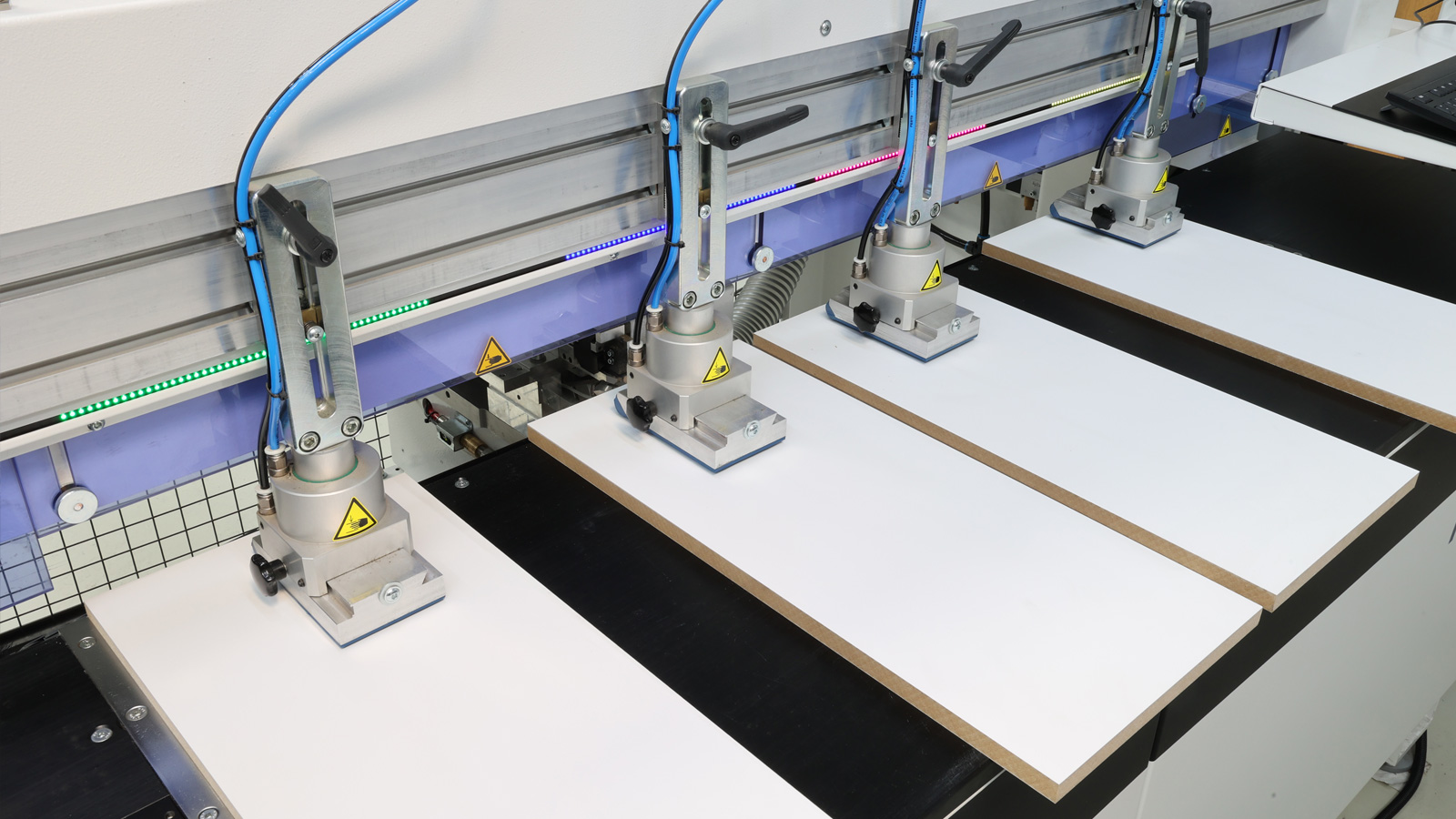

Space allocation with up to 4 workpieces -
![]()
Side stops - pneumatically lowerable. Enables the placement of workpieces > 1,250 mm (or > 2,800 mm) -
![]()

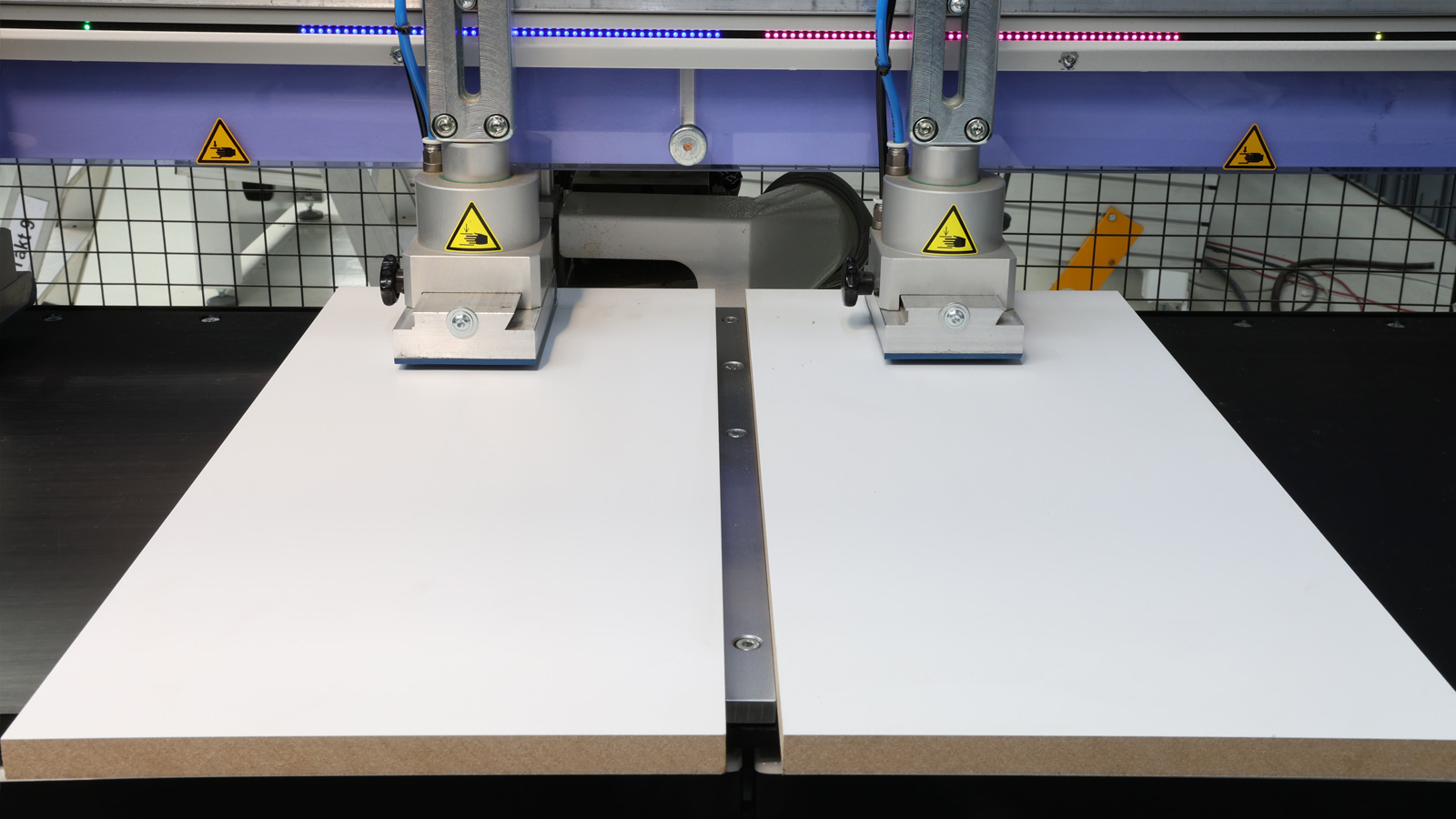

Center stop – pneumatically lowerable for flexible parts handling -
![]()

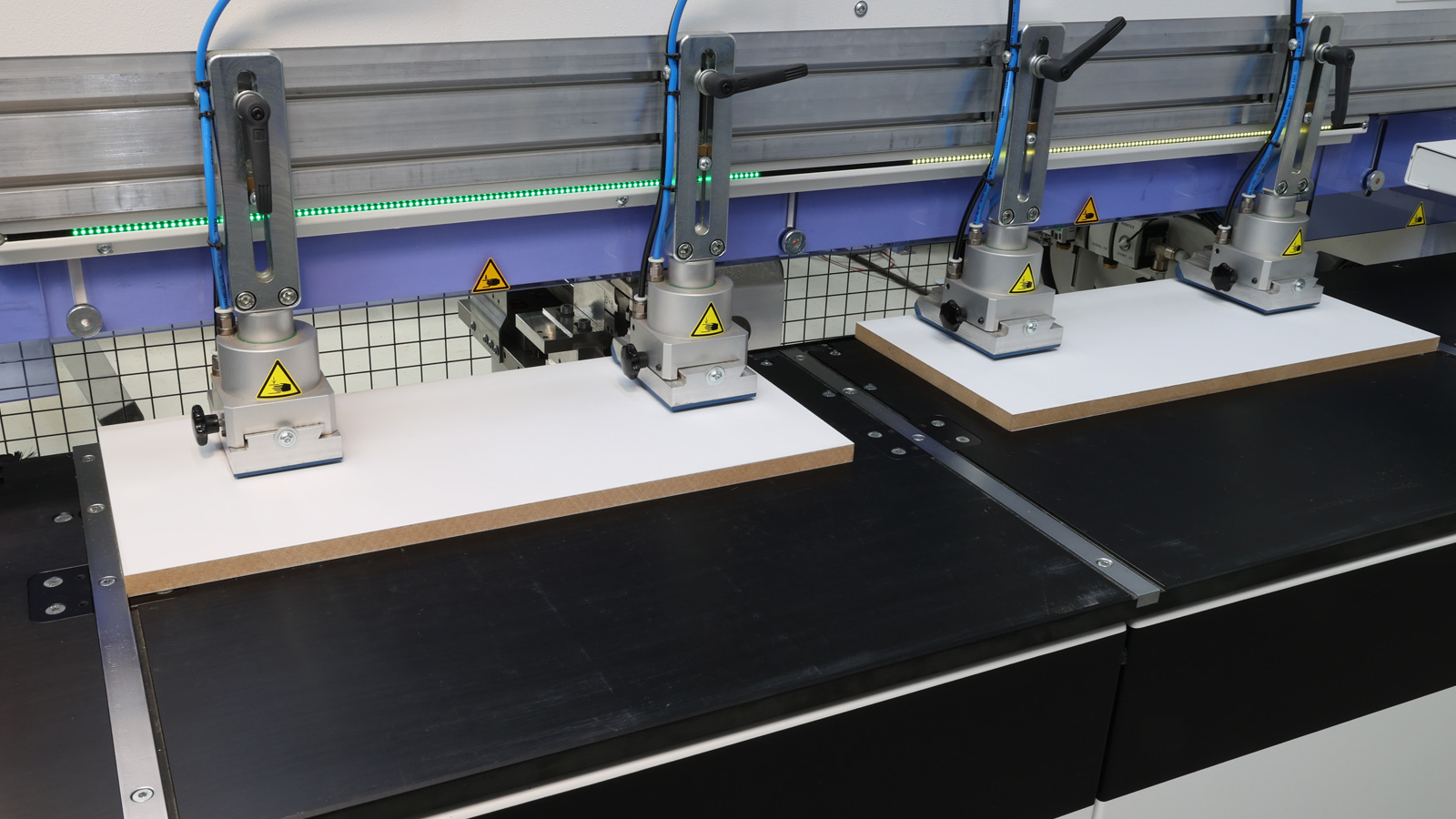

Optical LED assistance system to support the machine operator.
Features
-
Horizontal drilling and doweling in one machine
-
Up to 3 individually retrievable horizontal drilling spindles
-
Pneumatically lowerable side and center fence
-
4 to 8 clamping cylinders - individual height adjustment
-
Up to 2 doweling tools for automatic dowel insertion directly after drilling
Technical Data
| DRILLTEQ D-100 | 1.250 | 2.800 |
|---|---|---|
| Workpiece length [mm] | 20 – 1,250 | 20 – 2,800 |
| Workpiece width [mm] | 20 – 800 | 20 – 800 |
| Workpiece thickness [mm] | 10 – 60 | 10 – 60 |
| Compressed air connection [Zoll] | R 1/2“ | R 1/2“ |
| Compressed air [bar] | min. 7 | min. 7 |
| Total connected voltage [kW] | ca. 4.5 | ca. 4.5 |
| Extraction connection [mm] | Ø 80 | Ø 80 |
(Previous product name: CNC-Bohr- und Dübeleintreibmaschine ABD 050/060)
