CNC Machining Centers CENTATEQ N-100
CNC Machining Centers CENTATEQ N-100
Nesting. One action in action.

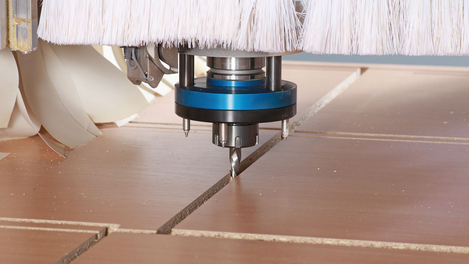

Our nesting machines enable optimized cnc-processing and dividing of panels and other plateshaped materials. Various automation level for material handling enables productive and efficient production. Typical applications for nesting: routing and vertical drilling of panel materials for cabinetry, doors and drawers, closet and storage solutions, furniture, store fixtures, work surfaces, plastics, composites and aerospace.
Product available exclusively in Indonesia, Malaysia, Philippines, Singapore, Thailand, Taiwan, Vietnam .
Images
-
![]()
Automatic tool changer with 8 positions -
![]()
Cutrite Nesting: optimization software for nesting application -
![]()
Ergonomic touchscreen operation and easy navigation: Experience the benefits of the powerTouch control system
Features
-
Clean workpieces due to well-directed dust extraction system from above
-
Effective vacuum due to advanced, and automatic MATRIX Pro Plus technology
-
Easy access to spindle and drilling gear from front of the machine
-
High workpiece processing quality due to synchronous drive in combination with high precision linear guides
Technical Data
| Working table length [mm] | 3100 |
| Working table width [mm] | 2250 |
| Working height [mm] | 100 |
| Vector speed X/Y – Z axis [m/min.] | 60-25 |
