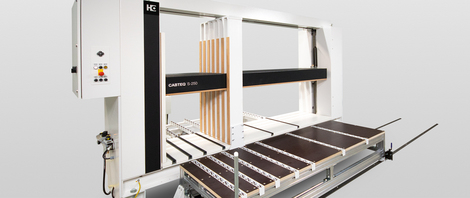

Case Clamps Stationary CABTEQ S-250
Case Clamps Stationary CABTEQ S-250
Power and ergonomics combine for challenging cabinet assemblies
The CABTEQ S-250 is highly versatile, with applications in the small trade sector, interior design and custom industrial production. Enhanced by an ergonomic environment, with features such as the sliding pre-plugging station and the manual cabinet uprighter, assembly is more efficient, performance can be increased and the workload of staff is markedly reduced.
Highlights
Sliding pre-plugging station: The preplugging station allows a simple assembly of the carcasses at working height of the press.
Manual cabinet uprighter: The cabinet uprighter is used for the uprighting and onward transport of assembled cabinets.
Press surfaces with tolerance compensation: The press plates function as a unit and sit on rubber feet, which provide cushioning. When the plates simultaneously reach the cabinet, the pressure is distributed completely evenly. This ensures that tolerances in the cabinet are better absorbed.
Images
-
![]()
Whether your production is furniture, store fixtures or other industrial cabinet production, the CABTEQ S-250 is the perfect machine because of it’s versatility. -
![]()
Square and precisely assembled cabinet thanks to the CABTEQ S-250. -
![]()
The CABTEQ S-250 is the perfect assembly machine for pressing cabinet furniture.
Features
-
The CABTEQ has two speeds: an approach speed (rapid speed) and a pressing speed.
-
At the touch of a button, the plates move from their starting position to the pressing position at rapid speed just before hitting the cabinet. The speed then switches to pressing speed.
-
Depending on the cabinet type, the pressing force can be adjusted to different requirements at the controller.
-
Each cabinet is pressed centrally and over the entire surface.
-
Built-in sensors detect the carcasses before they hit the pressing areas. This means that carcasses are pressed more gently.
Technical Data
| Carcass dimensions |
|
| Carcass length [mm] | 150 - 2,500 150 - 3,000 |
| Carcass depth [mm] | 250 - 700 250 - 900 |
| Carcass height [mm] | 150 - 1,400 |
| Press capacity |
|
| vertical [kN] | max. 12 - 18 |
| horizontal [kN] | max. 12 - 18 |
| Positioning speed |
|
| Fast motion [mm/s] | 50 |
| Slow motion [mm/s] | 25 |
| Working height [mm] | 300 |
| Weight [t] | 2.2 |
| Control | contactor control |
(Previous product name: Case clamp MPH 450)
Software
-
![]()

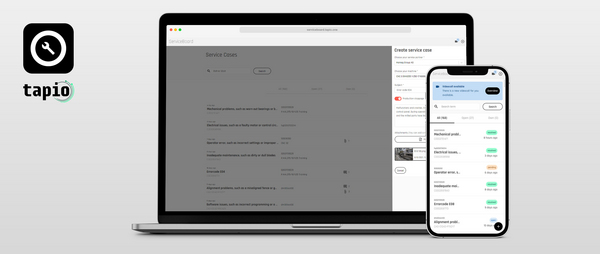

ServiceBoard
Easy machine service
Rapid creation of service tickets
Overview of all service cases
-
![]()
materialManager
All material data and stocks managed clearly in just one digital application
Central material management in the company
Integrated use of material data
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
Case clamp CABTEQ S-250
Smart design and perfect for your assembly needs. The CABTEQ S-250.
Brochures
Product Comparison
Case clamps
|
|
|
|
| |
|---|---|---|---|---|---|

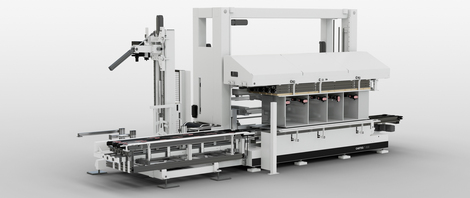

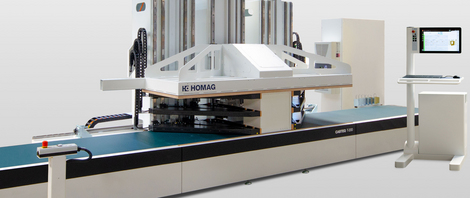

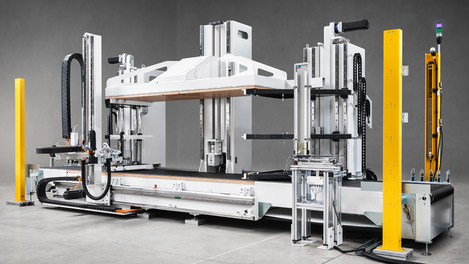

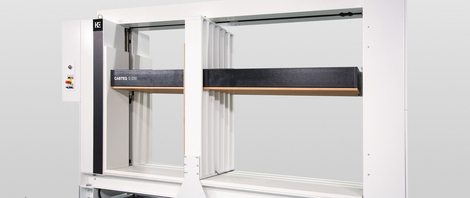

| CABTEQ S-200 | Stationary CABTEQ S-250 | CABTEQ T-200 | CABTEQ T-250 | CABTEQ T-500 | |
| Cabinet dimensions [mm] Cabinet length Cabinet width Cabinet height | 150 – 2.500 150 – 1.400 250 – 700 | 150 – 2.500 (3.000) 150 – 1.400 250 – 700 (900) | 250 – 2.500 (3.100) 220 – 1.320 (1.620) 120 – 800 (1.000) | 250 – 2.500 (3.100) 220 – 1.320 120 – 800 (1.000) | 300 – 2.500 300 – 1.200 250 – 800 |
| Pressing pressure [kN] vertical horizontal | max. 12 – 18 max. 12 – 18 | max. 12 – 18 max. 12 – 18 | max. 30 max. 15 | max. 30 max. 15 | max. 30 - |
| Processing height [mm] | 300 | 500 | 500 | 500 | 500 |
| Weight [t] | ca. 2,2 | ca. 2,2 | 5,0 – 6,0 | 6,0 | 7,0 |
| Positioning speed [mm/s] Rapid speed Slow speed | 50 25 | 50 25 | - - | - - | - - |
| Transports feed [m/min.] | - | - | 12 - 40 | 12 - 40 | - |
| Operating pressure [bar] | - | 6 | 6 | 6 | 6 |
| Details | Details | Details | Details | Details |
* depends on the workpiece thickness
