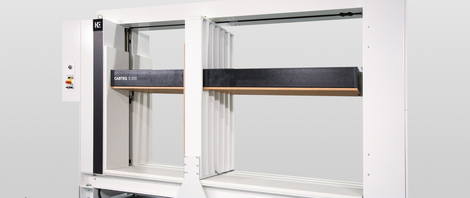

Case Clamps CABTEQ S-200
Case Clamps CABTEQ S-200
Solid equipment at a low price
The CABTEQ S-200 is the ideal assembly aid for pressing cabinet furniture. The practice-oriented machine design reduces the space requirement of the case clamp to a minimum. Thanks to its intuitive operation, cleanly pressed, sealed cabinets with the benefits of accurate squareness can be achieved at the touch of a button.
Highlights
Press surfaces with tolerance compensation: The press plates function as a unit and sit on rubber feet, which provide cushioning.
When the plates simultaneously reach the cabinet, the pressure is distributed completely evenly. This ensures that tolerances in the cabinet are better absorbed.
Images
-
![]()
The Case clamp is particularly developed for craftsmen. -
![]()
Square and precisely assembled cabinet thanks to the CABTEQ S-200. -
![]()
Absolutely tight cabinet due to pressing surfaces with tolerance compensation. -
![]()
The CABTEQ S-200 is the perfect assembly machine for pressing cabinet furniture.
Features
-
The CABTEQ S-200 has two speeds. One feed speed (rapid traverse) and one pressing speed.
-
At the touch of a button on rapid traverse, the slats move from their starting position to the pressing position just before the carcass. The system then switches to the pressing speed.
-
Depending on the cabinet type, the pressing forces can be variably adjusted using the control knob.
-
Each carcase is pressed centrally and over the entire surface.
Technical Data
| Carcass dimensions |
|
| Carcass length [mm] | 150 - 2,500 |
| Carcass depth [mm] | 250 - 700 |
| Carcass height [mm] | 150 - 1,400 |
| Press capacity |
|
| vertical [kN] | max. 12 - 18 |
| horizontal [kN] | max. 12 - 18 |
| Positioning speed |
|
| Fast motion [mm/s] | 50 |
| Slow motion [mm/s] | 25 |
| Working height [mm] | 300 |
| Weight [t] | 2.2 |
| Control | contactor control |
(Previous product name: Case clamp MPH 410)
Software
-
![]()

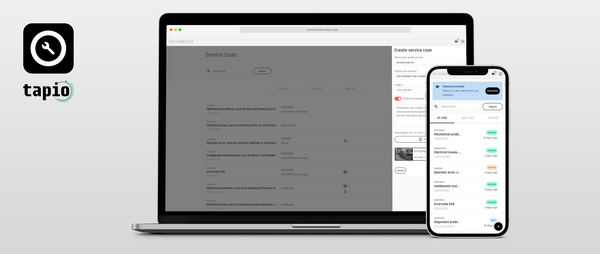

ServiceBoard
