Intuitive saw control system CADmatic 5 - simple, fast and clearly structured

Work Preparation CADmatic 5

Work Preparation CADmatic 5

Intuitive saw control system — simple, fast and clearly structured

The latest generation of the HOMAG saw control system has a 3D assistance graphic that clearly shows the machine operator all the steps in order. It is intuitive to operate, which shortens the training time and reduces errors to a minimum. What's more, all HOMAG saws with CADmatic 5 now come tapio-ready as standard, allowing direct access to cloud-based high-performance software.

Highlights

quickTip der Assistent für eine optimal eingestellte Säge

quickTip is a new assistance function integrated into the HOMAG CADmatic saw control system as standard for maximum quality, operating comfort and performance

Einfach, prozesssicher und transparent Teile nachproduzieren mit der CADmatic-Option Nachproduktion von Teilen

Reproduce parts reliably, quickly and using a transparent process with the reproduction of parts option in CADmatic

Einfache, intuitive und ergonomische Maschinenbedienung durch die 3D-Assistenzgrafik ermöglicht fließende Prozesse und einen gleichmäßigen Output

Simple, intuitive and ergonomic machine operation thanks to the 3D assistance graphic, enabling smooth processes and consistent output

Images

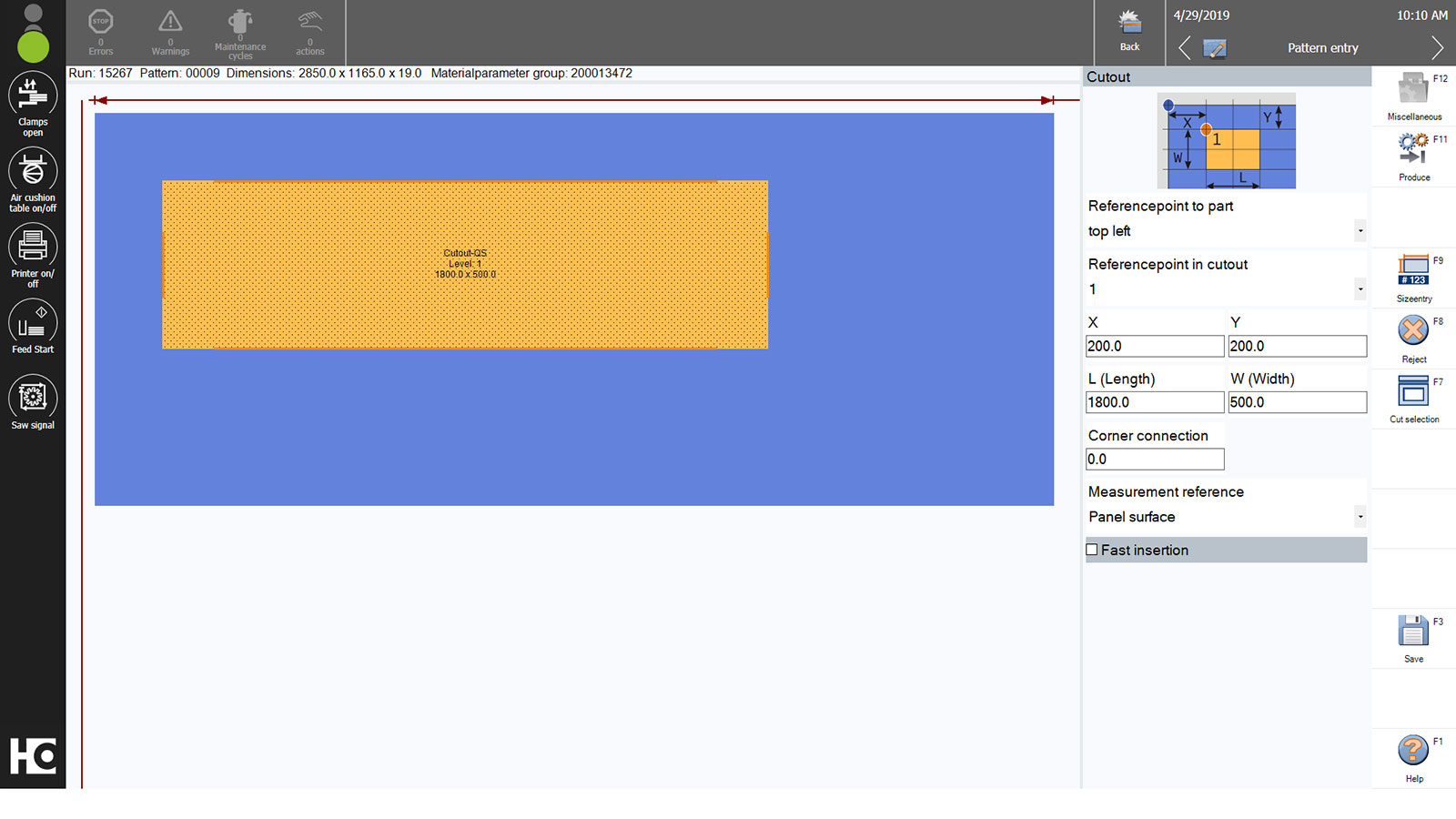

  • Cut-out and stress elimination cut (optional)

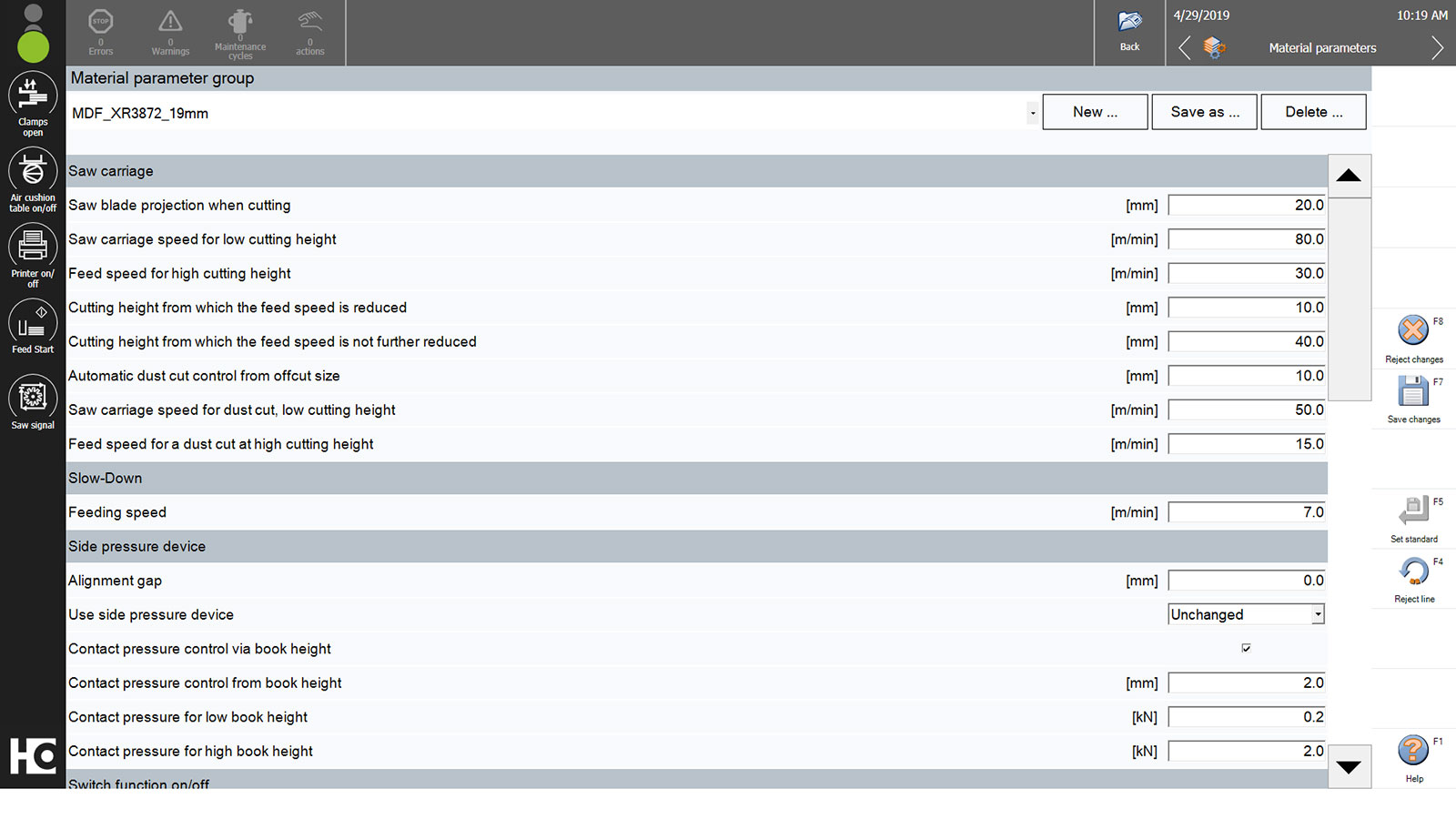

  • Material-dependent parameters — the parameters for each material only have to be entered once, which shortens setup times (optional)

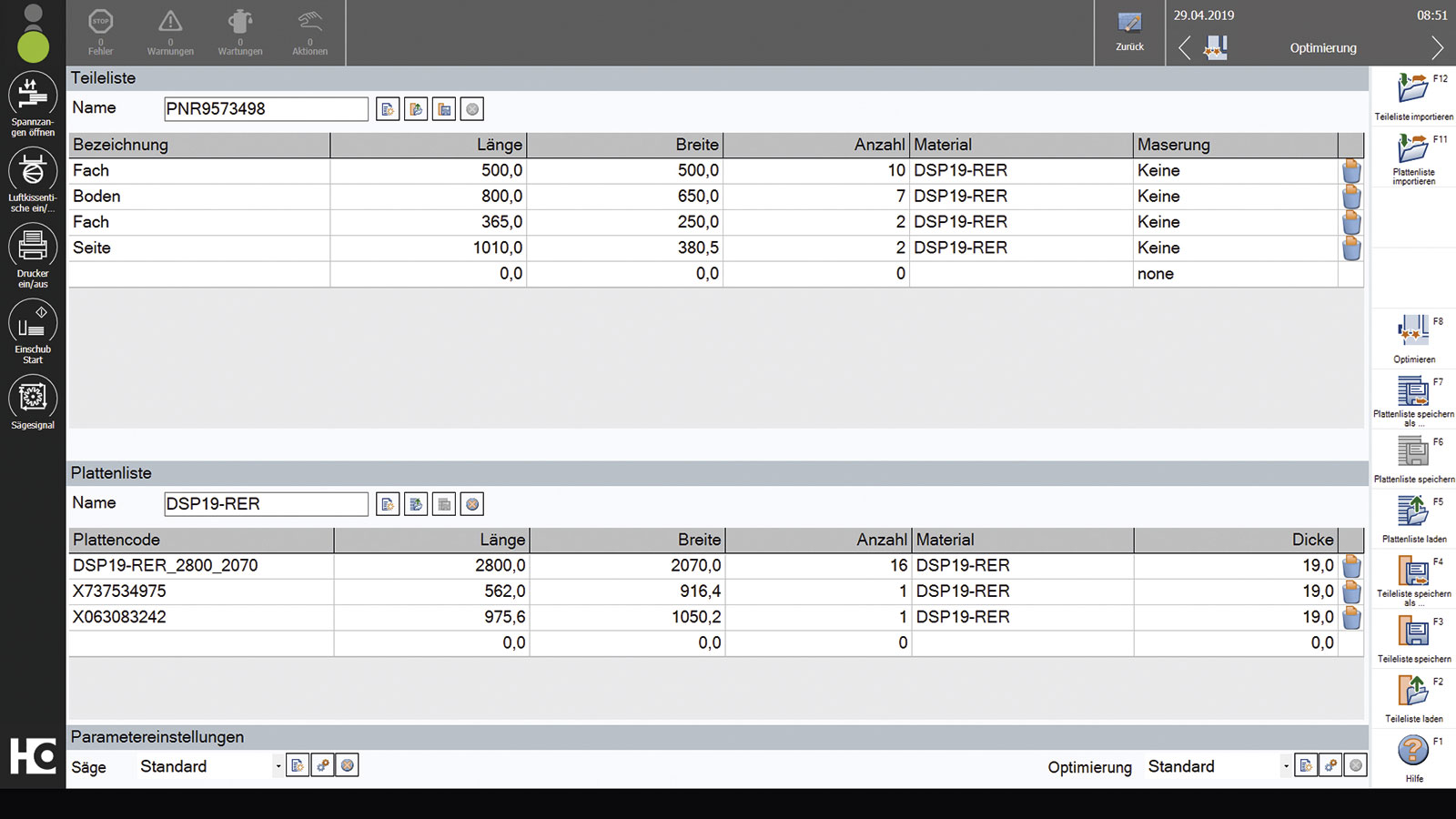

  • CADplan — for manual cutting pattern optimization directly at the saw (optional)

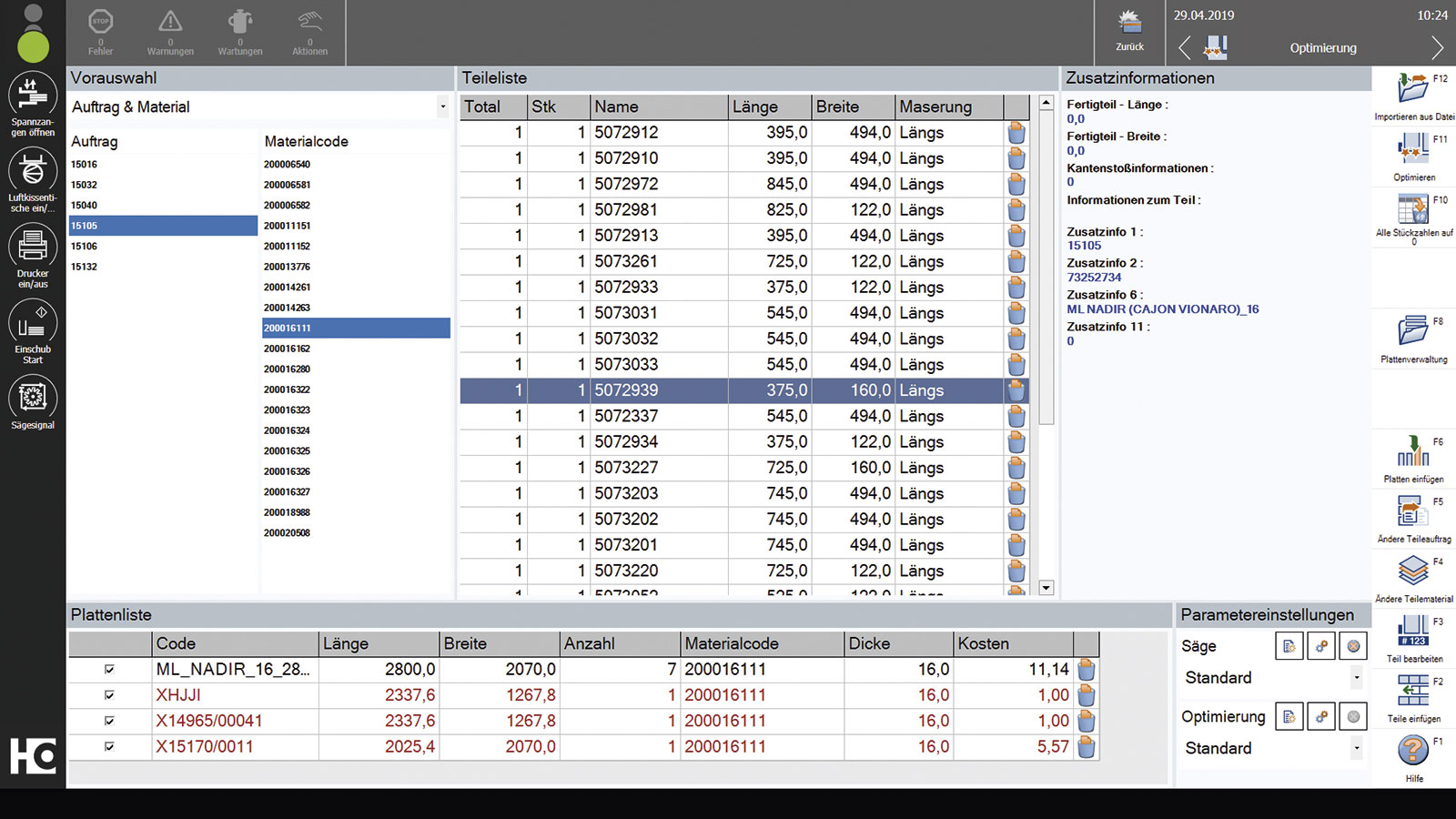

  • Just-in-time optimization — allows part lists to be imported directly from the office and processed at the saw (optional)

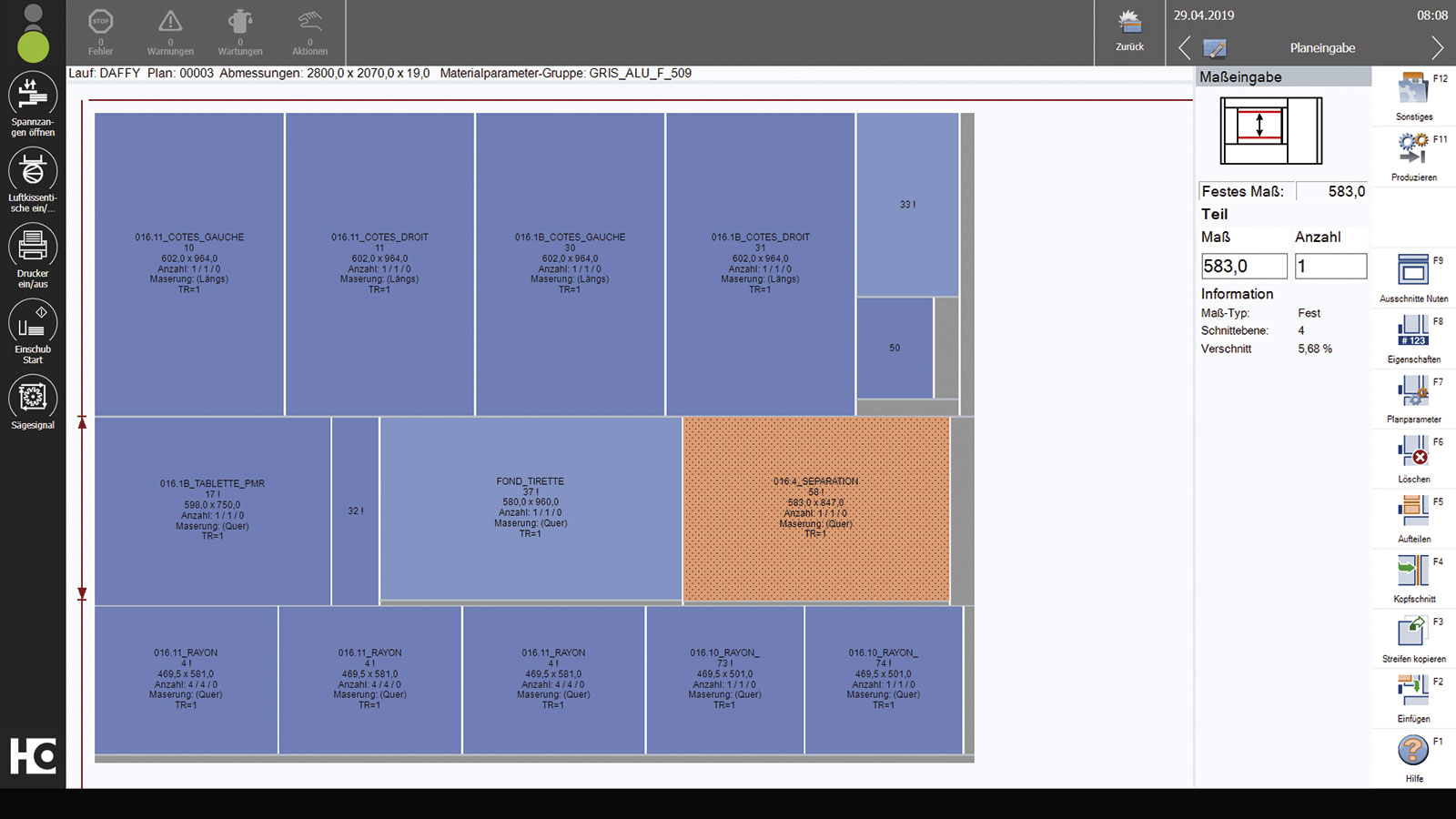

  • Pattern input — enter all the data your saw needs in order to cut the panel material

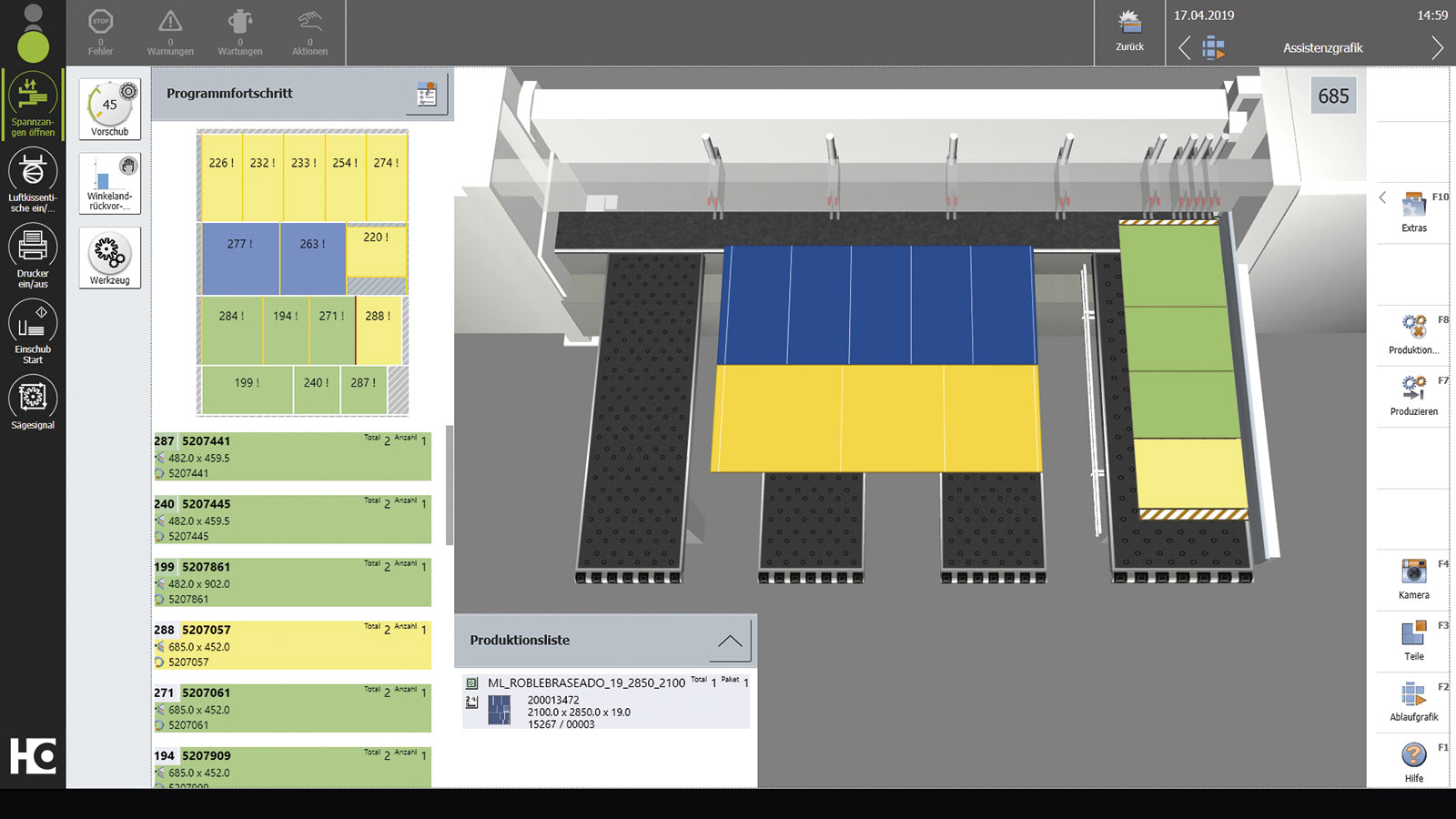

  • Classic destacking module — single parts are color-coded in the cutting pattern and in the process graphic (optional)

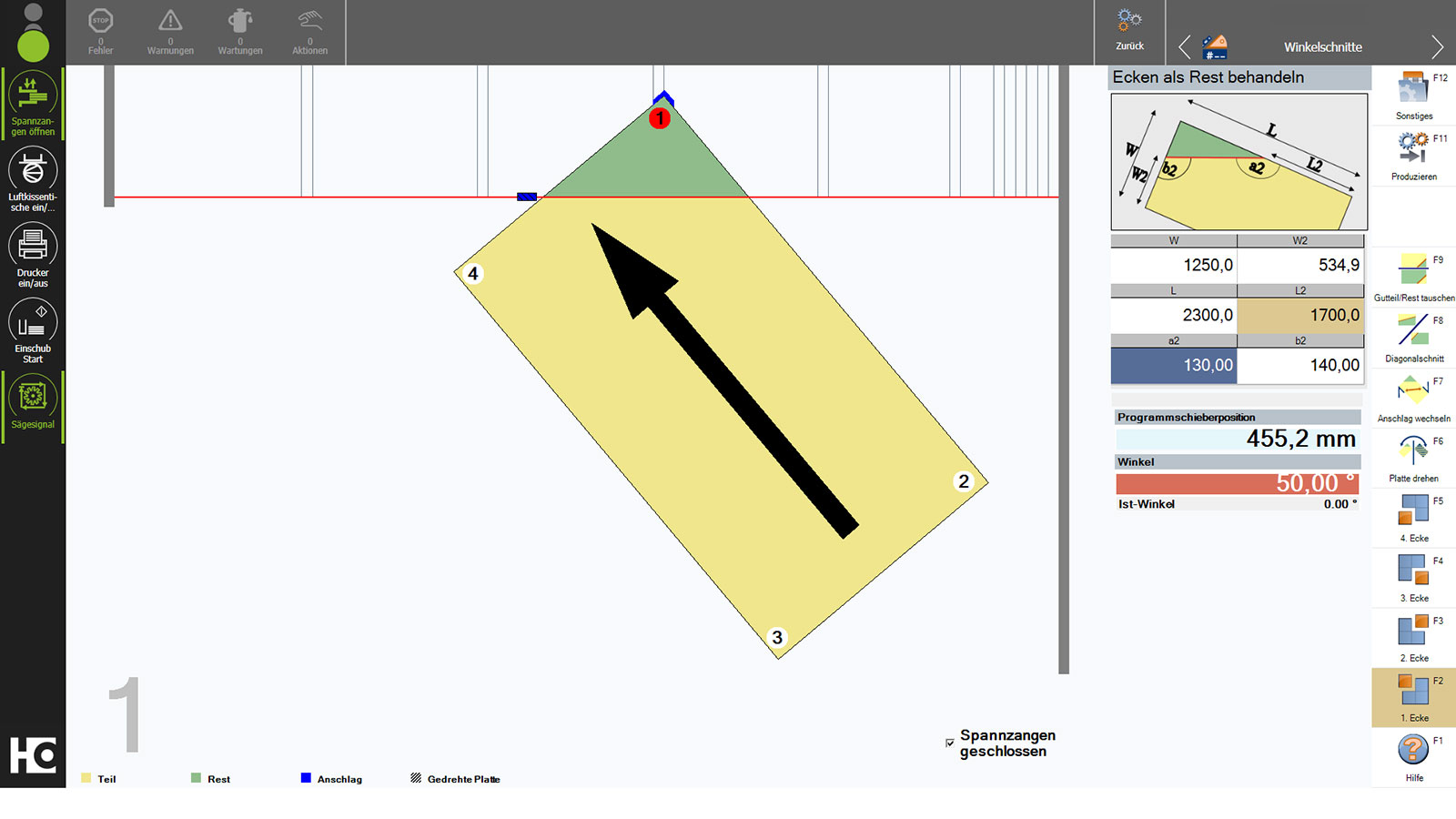

  • Automatic angle cut — for quick, convenient and precise angle cuts (optional)

Features

  • Simple pattern input via graphical interface speeds up cutting

  • Uniform operating concept thanks to the powerTouch user interface

  • Optional: CADplan cutting pattern optimization directly at the saw, storage location management for panels and offcuts and help with destacking with the Classic or Advanced destacking module

Here's how your colleagues produce

Show more

Videos

Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


» Privacy Policy

quickTip — The assistant for optimal use of the machine functions

quickTip is a new assistance function integrated into the HOMAG saw control system for maximum quality, operating comfort and performance.

  • Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


    » Privacy Policy

    Reproduce parts on all HOMAG saws

    See how you can reproduce parts easily, quickly and reliably using the reproduction of parts option in CADmatic.
