Storage Systems STORETEQ P-310|P-510 and P-320|P-520
Storage Systems STORETEQ P-310|P-510 and P-320|P-520
Save space together

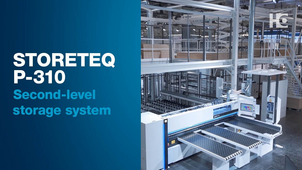

The STORETEQ P-310|P-510 second-level storage system and STORETEQ P-320|P-520 double-level storage system offer the efficient solution for increasing storage capacity when space is limited. Instead of building new production halls, the existing hall height is converted into new storage areas in an optimal and resource-saving way. For this purpose, the panels are stored on the second level with the STORETEQ P-310|510 and on two levels with the STORETEQ P-320|520.
Highlights
![Maximale Lagerkapazität auf kleinstem Raum: Das STORETEQ P-310 nutzt den gegebenen Platz optimal](/fileadmin/_processed_/8/7/csm_storeteq-p-310-lager-auf-zweiter-ebene-awm_bea97509eb.jpg)
Maximum storage capacity in the smallest of spaces: The storage systems make optimum use of the space available — without expensive hall extensions
![Die Doppelstocklager STORETEQ P-320 | P-520 nutzen die vorhandene Hallenhöhe optimal und ressourcenschonend](/fileadmin/_processed_/d/f/csm_storeteq-p-320-p-520-doppelstocklager_f9a1f28354.jpg)
Standardized interfaces and uniform data integration and processing for easy integration of one or more processing machines
![Hohe Materialvielfalt: Ob Kunststoff, Plexiglas oder Laminate, beschichtete oder unbeschichtete Platten - auch beim Plattenhandling ist das STORETEQ P-310 und P-510 ein echtes Multitalent](/fileadmin/_processed_/f/c/csm_storeteq-p-310-lager-auf-zweiter-ebene-awm2_20d3421bf3.jpg)
A wide variety of materials: Whether it's handling plastic, plexiglass or laminate, coated or uncoated panels, the STORETEQ P-310|P-510 and P-320|P-520 are true all-rounders when it comes to handling panels
Images
Features
-
Flexible, fast and economical job processing thanks to lower search times and increased productivity while maintaining the same number of personnel required
-
High panel quality thanks to gentle panel handling
-
Intelligent standby: The storage system only uses energy when it actually moves
-
Sophisticated material management and optimum material consumption right up to offcut management
-
One software solution, all options: The woodStore storage software grows with the business, from a beginner to a high-end user
Technical Data
STORETEQ STORAGE SYSTEM | Basic machine | With additional equipment |
---|---|---|
Span width [mm] P-300 | 5,000 | 12,000 |
Span width [mm] P-500 | 5,000 | 16,000 |
Frame length [mm] P-300 | 10,000 | 50,000 |
Frame length [mm] P-500 | 10,000 | 100,000 |
Speed of Bridge [m/min.] | 60 | 120 |
Speed of carriage [m/min.] | 80 | 120 |
Speed lifting drive [m/min.] | 30 | 45 without double scissor-lift 65 with double scissor-lift |
Workpiece length [mm] | 1,200 - 4,200 | max. 5,600 |
Workpiece width [mm] | 800 - 2,200 | min. 400 |
Workpiece thickness raw boards [mm] | from 6 | |
Workpiece thickness MDF [mm] | from 3 | |
Workpiece thickness, coated | from 0.8 | |
Panel weight [kg] | max. 250 | max. 350 |
Stack height at the top [mm] | 1,200 | max. 2,000 |
Ceiling height at the bottom [mm] | 2,500 | max. 4,000 |
