Edge Banding Machines EDGETEQ S-200
Edge Banding Machines EDGETEQ S-200
Simply a better edge.
If you are new to mechanical edge processing, you have come to the right place. Fully process your workpieces with joining and profile trimming. All the machines are equipped with a precise gluing unit (i.a. for processing of PUR-glue). On request, we can equip two free spaces for post-processing in accordance with your requirements to provide you with optimum flexibility. Alongside the machine‘s extensive unit equipment, automation of the units is also a possibility. Thanks to their short and compact design, these machines are suitable for use even in the smallest of workshops.
Highlights
NEW: Industrial standard in the entry-level segment. Easy, fast and safe removal of the feed unit as well as an adjustable magazine height for different edge overlaps. The servo edge feed increases precision and durability.
Joint trimming unit with perfect cut for optimum glue joint quality.
Two-motor snipping unit for optimum results.
Images
-
![]()
easyTouch control - 7" touch display for easy and intuitive oparation of the machine -
![]()
Automatic edge magazine for coiled material
and fixed lenthgs -
![]()
Pressure zone up to 3 mm edge thickness for an optimal glue joint -
![]()
Glue application with glue roller (e.g. EVA or PUR) or airTec - unit for high flexibility -
![]()
For end trimming of the front and rear edge
material overhang with drawing cut -
![]()
Trimming unit with manual adjustment / optional pneum. 3-point adjustment for an effective production and shorter changeover time -
![]()
1-motor profile trimming unit - processing of edge overhangs at the front and rear edges -
![]()
Profile scraping unit and glue joint scraping unit to smooth radii -
![]()
Buffing unit to polish edges and maintain their natural colour
Features
-
Also available with joint trimming unit for a perfect cut and optimum glue joint quality
-
For banding edges of up to 3 mm and workpieces of up to 40 mm (60 mm - 1130 FC | 1130 AT)
-
Glue applied directly onto the workpiece to ensure constant application (i.a. for processing of PUR-glue).
-
Zero joints - airTec unit for a perfect zero joint finish
-
Contour trimming unit for rounding corners
-
Freely configurable post-processing for a high level of flexibility
Start now!
Technical Data
Model 1100 / Model 1110 F | Model 1120 FC | Model 1130 FC | Model 1130 AT | |
|---|---|---|---|---|
| Machine length [mm] | 3.690 | 4.305 | 4.605 | 4.605 |
| Feed speed 8 [m/min] | 8 | 8 | 11 | 8 |
| Workpiece width [mm]* in case of thickness 8 - 22 |
|
|
|
|
| Workpiece thickness [mm] | 8 - 40 | 8 - 40 | 8 - 60 | 8 - 60 |
| Edge thickness coils [mm] | 0,3 - 3 | 0,3 - 3 | 0,3 - 3 | 0,3 - 3 |
| Edge thickness strips / solid strips [mm] | 0,3 - 3 | 0,3 - 3 | 0,3 - 3 | 0,3 - 3 |
* depends on the workpiece thickness
(Previous product name: Edge banding machines Ambition 1100: 8 m/min feed speed)
Software
-
![]()
Edgeband Management Set: The edgeband assistant
The edge material and all related information at a glance
Clear management and unique identification of edges in the rack (incl. residual lengths)
Reduced setup times thanks to faster edge changes
-
![]()
materialManager
All material data and stocks managed clearly in just one digital application
Central material management in the company
Integrated use of material data
Here's how your colleagues produce
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy
The QA65 application unit on the EDGETEQ S-200.
Achieve industrial quality even with our smallest EDGETEQ S-200 edge banding machine thanks to the new application unit with servo edge feed
-
![]()
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.

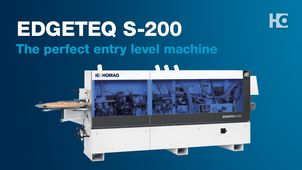

» Privacy PolicyEdgebander EDGETEQ S-200
The perfect entry-level machine
Brochures
Product Comparison
Edge banding machine
|
|
|
|
| |
|---|---|---|---|---|---|
| EDGETEQ S-200 | EDGETEQ S-240 | EDGETEQ S-300 | EDGETEQ S-380 | profiLine | EDGETEQ S-500 Optimat | profiLine | |
| Feed rate adjustable [m/min] | 8-11 | 11 | 8-14 | 8-20 | 16-20 (25) |
| Workpiece width min. [mm] * in case of thickness 8-22 mm | 70 | 70 | 70 | 70 | 60 |
| Workpiece thickness [mm] | 8-60 | 8-60 | 8-60 | 8-60 | 8-60 |
| Edge thickness coils [mm] | 0,3-3 | 0,3-3 | 0,3-3 | 0,3-3 | 0,3-3 |
| Edge thickness strips / solid strips [mm] | 0,3-3 | 0,4-6 | 0,4-8 | 0,4-15 | 0,3-12 (20) |
| Details | Details | Details | Details | Details |
