Edge Banding Machines EDGETEQ S-230

Edge Banding Machines EDGETEQ S-230

Perfect edge banding with our EDGETEQ S-230 Series

The right solution for your requirements. The EDGETEQ S-230 Series machine leaves nothing lacking. Whether your needs are "batch size one" production, for demanding bespoke shop fitting applications, living & bed room furniture or functional office furniture, the EDGETEQ S-230 Series always offers the right solution for your requirements.

Benefits

  • Perfect cut and high operating life due to diamond tipped tools for an optimum edge joint quality.
  • Counter pressure device magazine for sensitive edges.
  • Coil and automatic strip magazine for a reliable edge material supply. Optimal glue joints, by controlling the exact amount of glue.
  • Heavy pressure zone up to 3 mm edge thickness and 50 mm workpiece height for an optimal glue joint.
  • Precise end-cut through a strong end­trimming unit, equipped with THK guides. Chamfer/straight adjustment by easily tilting the unit.

Product available exclusively in Bangladesh, Indonesia, India, Malaysia, Philippines, Singapore, Thailand, Taiwan, Vietnam .

Images

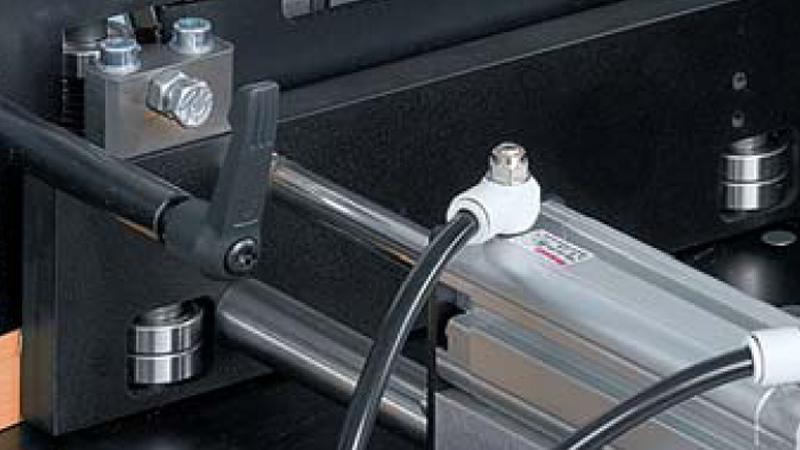

  • Counter pressure device magazine for sensitive edges.

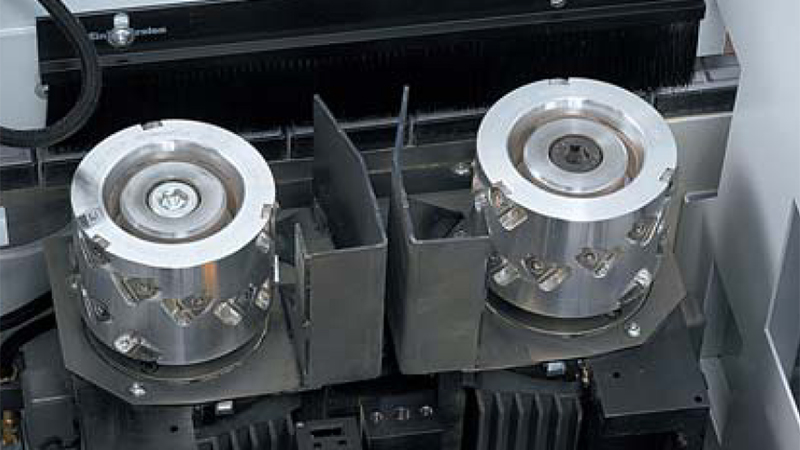

  • Perfect cut and high operating life due to diamond tipped tools for an optimum edge joint quality.

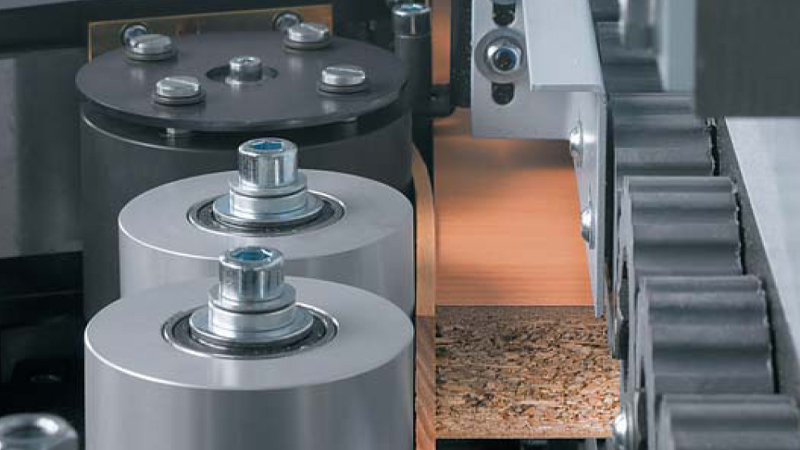

  • Heavy pressure zone up to 3 mm edge thickness and 50 mm workpiece height for an optimal glue joint.

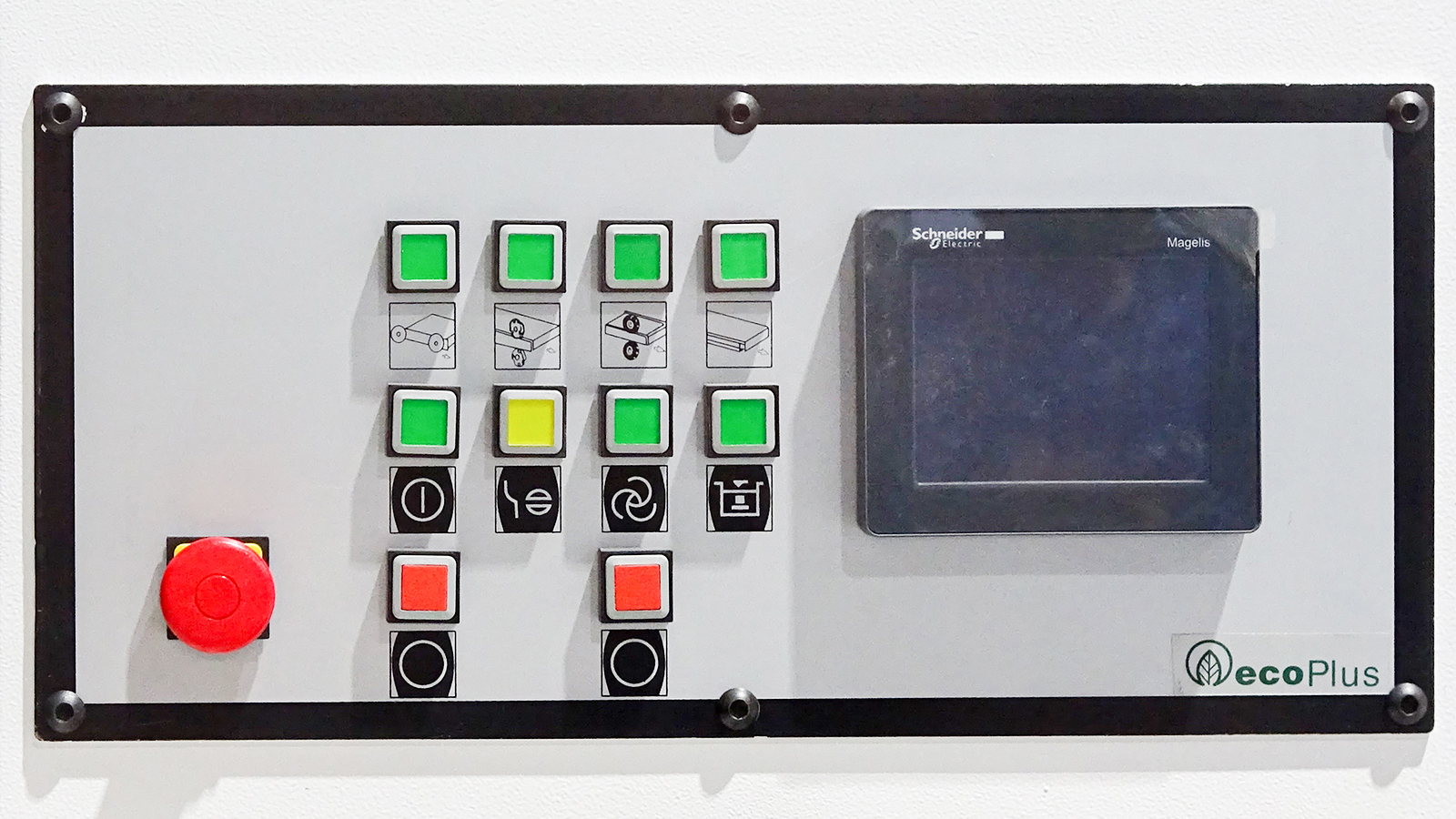

  • EasyControl EC 10+, offering every "plus" for the customer

Technical Data

 EDGETEQ S-230 – NKR 210
Workpiece thickness [mm]8 – 50
Edge Material thickness [mm]0.4 – 3
Feed speed [m/min]11
Working dimensions [mm]1.300 x 2.180
Working height [mm]950
Machine length [mm]3.500

(Previous product name: Edge banding machines NKR 210-220)
